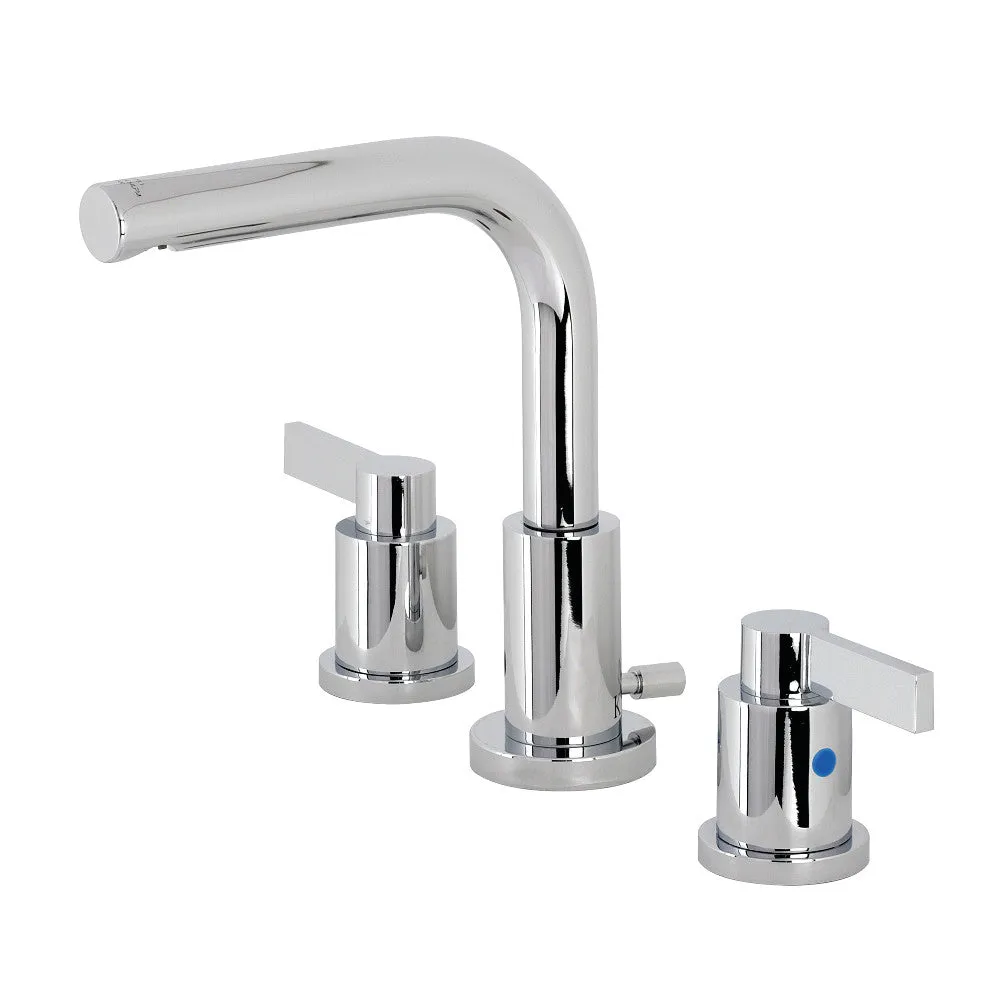

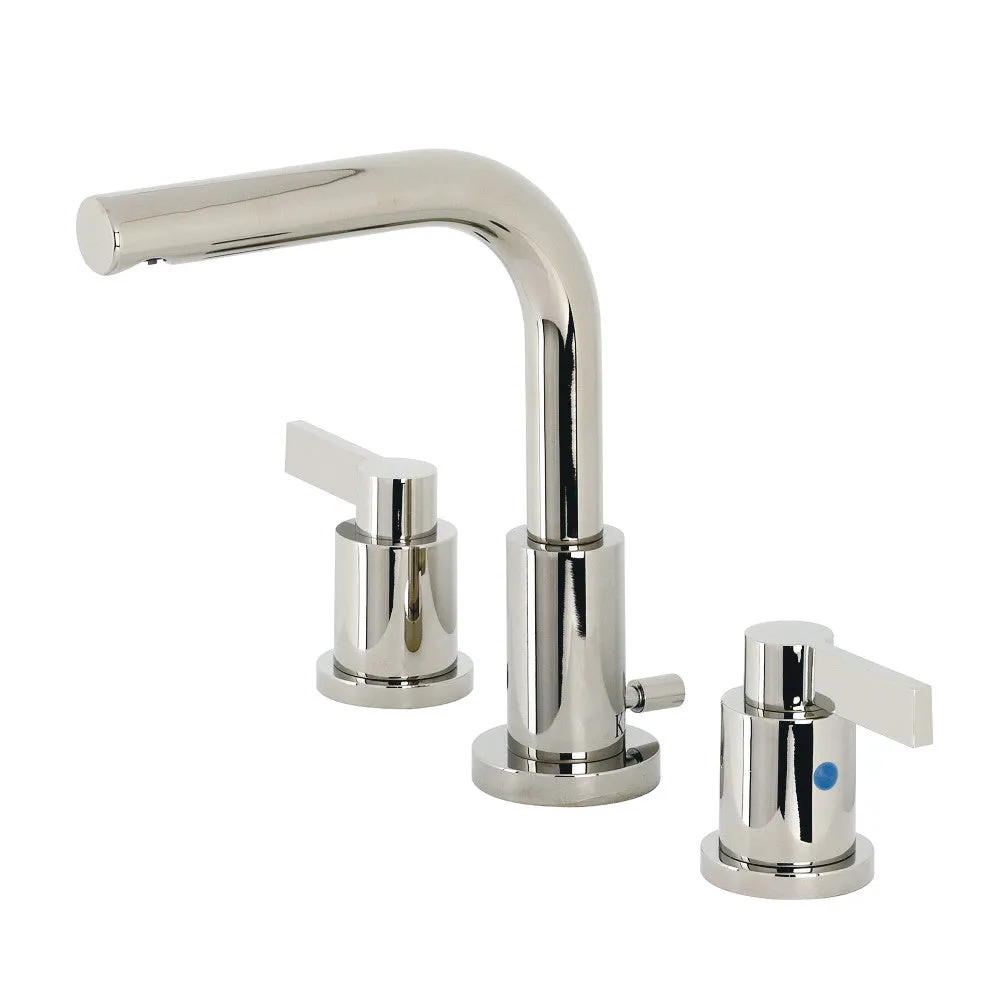

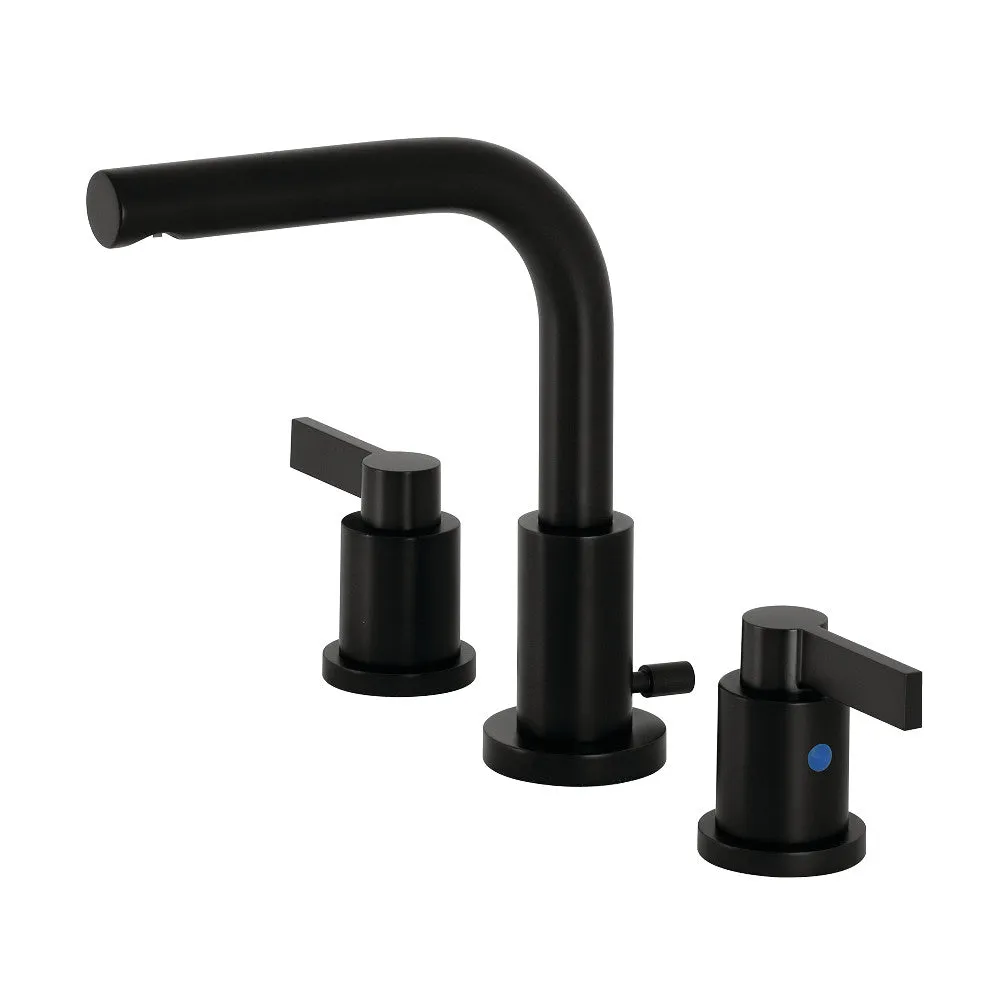

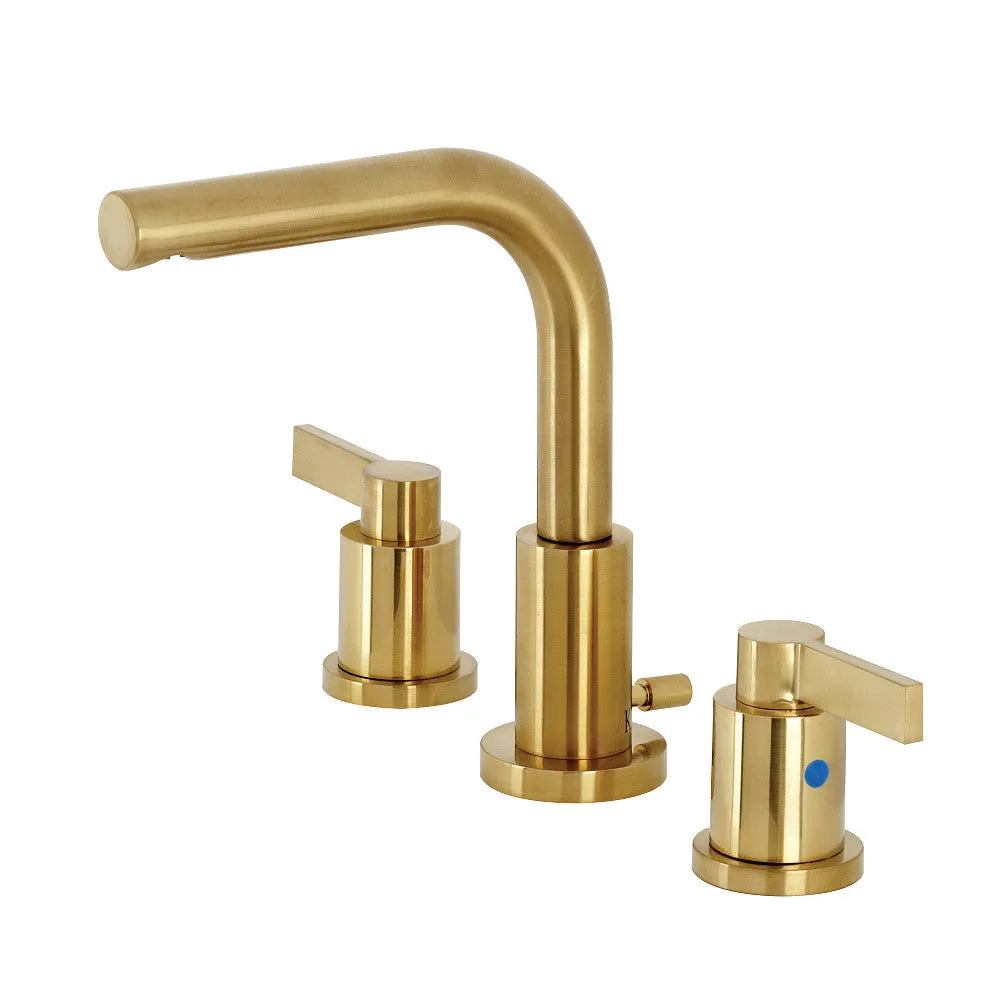

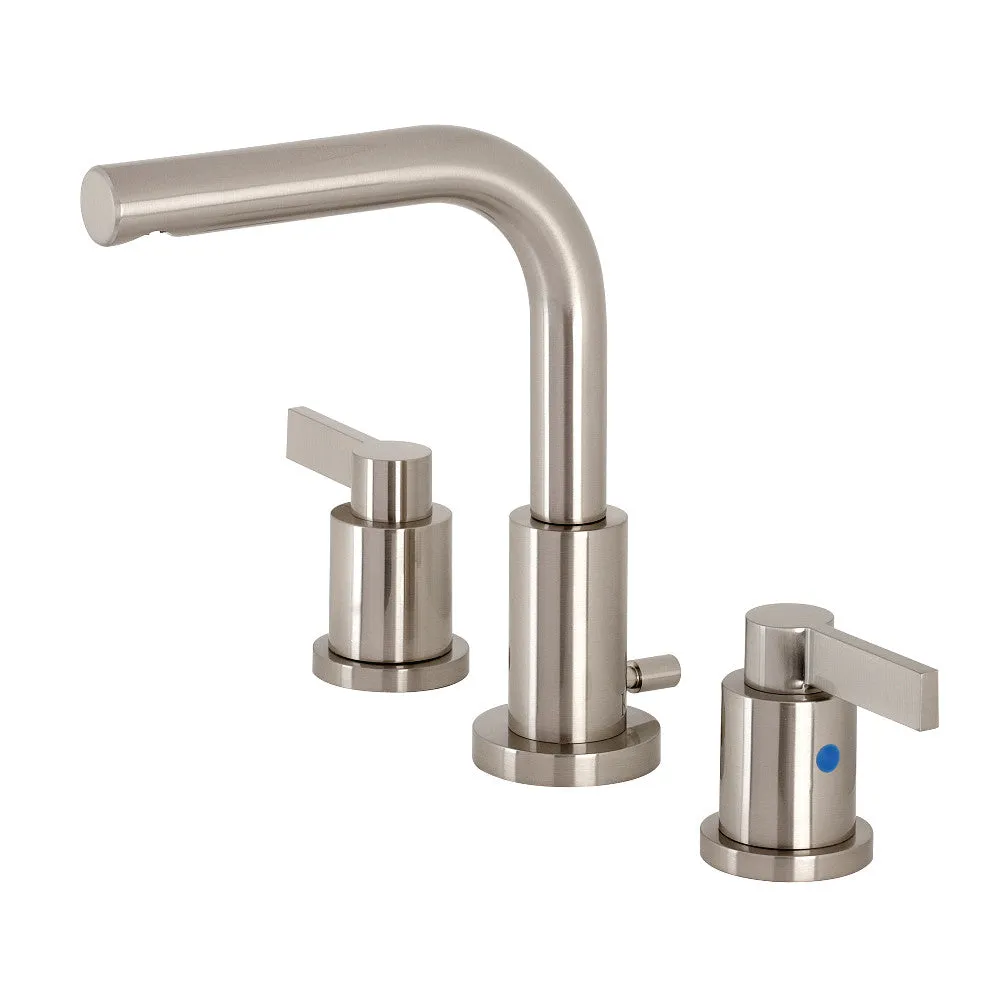

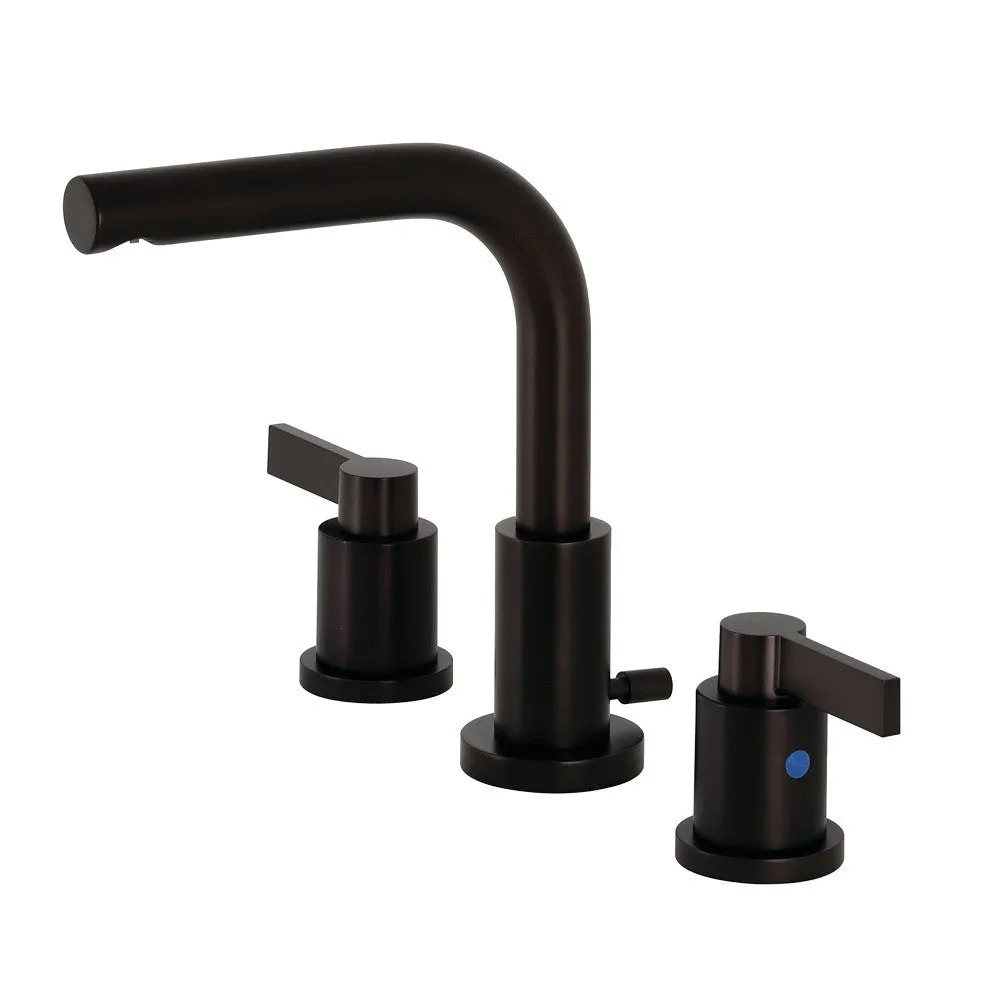

The chic fashion of this faucet is distinguished by its expressive artistry and flat, ergonomic levers. Ideal for more spacious bathrooms, widespread faucets are more spread apart and feature a 3-hole installation. The NuvoFusion 8-inch widespread bathroom faucet with brass pop-up and its featured sturdy brass construction and premium brushed brass finish are guaranteed to glamorize your home's modern ensemble for years to come. Revive the obsolete with the illustrious prestige of this fixture. A matching finish drain is also included.
Features:
- Solid brass construction
- Drip-free ceramic disc cartridge
- Deck mount 8" to 16" widespread 3-hole installation
- 1.2 GPM/4.5 LPM spout flow rate at 60 PSI
- Standard 1/2" IPS connection
- 6-3/4" spout clearance
- 5-3/8" spout reach
- Includes matching finish pop-up drain
- Lever handles meet ADA guidelines
Specifications:
| Collection | NuvoFusion |
| Theme | Modern |
| Material | Brass |
| Mounting Type | Deck Mount |
| Installation Type | Widespread |
| Faucet Holes | 3 |
| Faucet Centers | 8 to 16 |
| Max Deck Thickness | 1.31 |
| Drain Included | Yes |
| Handles Included | Yes |
| Number of Handles | 2 |
| Handle Style | Lever |
| Spout Flow Rate (GPM) | 1.2 |
| Hose Included | No |
| Pullout Spray | No |
| Pulldown Spray | No |
| Sidespray | No |
| Valve Type | Ceramic Disc Cartridge |
| Country of Origin | Taiwan |
| Warranty | 10 |
| Product Dimensions (LxWxH) | 10.06 x 5.38 x 2.19 |
| Product Weight (lbs) | 6.49 |
| Packaged Dimensions (LxWxH) | 15.51 x 9.78 x 2.51 |
| Packaged Weight (lbs) | 6.87 |
| ADA | Yes |
| CUPC Certified | Yes |
Measurement Charts
Exploded Parts Diagram
